SET307 – Direct CAN-BUS connection set for BMW Bikes

Overview

BMW Bikes Cable

Skip to the beginning of the images gallery

Details

The SET307 contains a designated cable and antenna for key programming procedures (in All Keys Lost situations and for spare key addition) on BMW motorcycles with smart key on bench on the vehicle when needed.Functionality:

• Key programming on the vehicle (All Keys Lost and spare key addition)

• Key programming on bench (All Keys Lost and spare key addition)

• Change ISN in the EWS module on bench

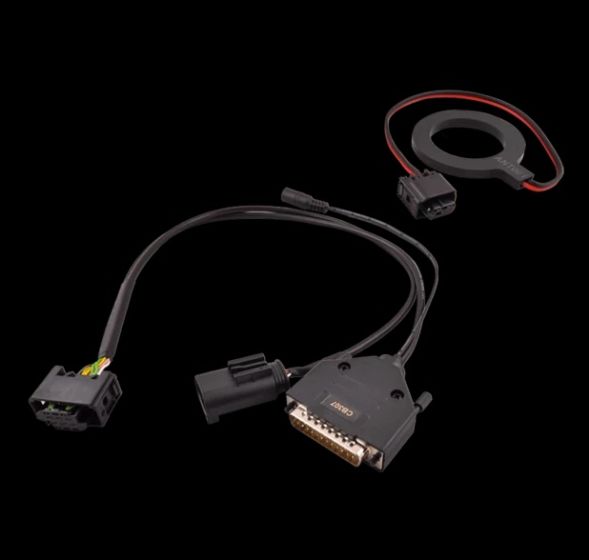

Contents:

• CB307 Direct CAN-BUS Connection Cable for BMW Bikes

• ANT001 Key Transponder Antenna for BMW Bikes

Supported vehicles:

• BMW motorcycles with smart key

When working with the motorcycle, connect the CB307 between the EWS and the rest of the installation (refer to the manual for this purpose)

Follow the instructions in the software to complete the procedure.

When working on bench, use the whole set: both the CB307 cable and the ANT001antenna are required for guaranteed success. Connect the CB307 to the EWS module (via the designated connector) and to AVDI (via the DB25 connector), then to a 12V power supply adapter. Connect the CB307 cable to the antenna ANT001, as well, to complete the procedure on bench, the software will request you to place the new key on it to program it.

ABRITES Vehicle Diagnostic Interface (AVDI) with active Assist plan, and the BN017 license Key programming, VIN, and immobilizer (EWS/HUF/X_SLZ ) adaptation for BMW Bikes is required to use the full functionality of this productis required to use the full functionality of this product.
