MN031 - DAS Manager For Mercedes-Benz Trucks

he MN031 license is developed by the Abrites team for procedures related to the vehicle's Immobiliser.

This functionality allows various procedures to be performed on the Mercedes-Benz truck range of vehicles, as well as buses, based on the Mercedes-Benz platform, as well as Setra vehicles using Infrared keys.

These include:

• Spare key programming
• ALL KEYS LOST

for all infrared-based trucks up to 2020 and selected buses based on the MB platform

• Module replacement - EIS/EZS, ECU (MCM), TCU (TCM)
• Module reset (virgin)
• Read/write coding
• Personalisation
• Activation

• NEW: Trasmission and Clutch calibration!

(Usually the “kissing point” parameters of the used transmission module carry coding from the donor vehicle, so this can cause difficult gear shifting when the unit is adapted in another one. The calibration procedure is done in a minute and makes sure gear shifting is smooth and seamless after personalizing a used module!)

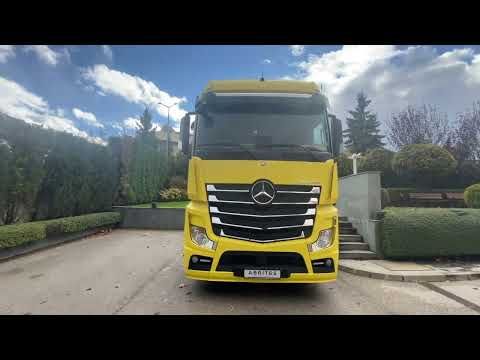

• Mercedes-Benz Actros
• Mercedes-Benz Arocs
• Mercedes-Benz Antos
• (and other models from the truck range with IR keys)

• Mercedes-Benz Travego
• Mercedes-Benz Tourismo 3rd Generation
• Setra with IR keys

(and other models from the buses range with IR keys)

In order to complete the key programming procedure, you will need the ZN003 Abrites PROTAG V2 Programmer, the TA69 Abrites Infra-red key for Mercedes trucks, the ZN051 Abrites Distribution box, as well as the ZN075 Abrites IR-adapter for Mercedes trucks.

The ZN075 is used for password reading during key programming.

In All Keys Lost situations the CB022 jumper cable is also required.

The CB025 - Extension Cable for DS Box Relay is required to connect the EZS with the fuse, when the distance between them is big.

An AVDI and active Assist plan are required to purchase and use this product.
