HK013 - Cluster Calibration for KIA/Hyundai Vehicles

Overview

- Cluster calibration

Skip to the beginning of the images gallery

Details

The HK013 extends the functionality of legacy licenses HK005 and HK007 for mileage calibration in the dashboard of Hyundai/KIA vehicles.

Using the HK013 license, you can calibrate the mileage value in the instrument cluster module in a few clicks. This is a very helpful functionality allowing you to replace a faulty dashboard with a new or a used one.

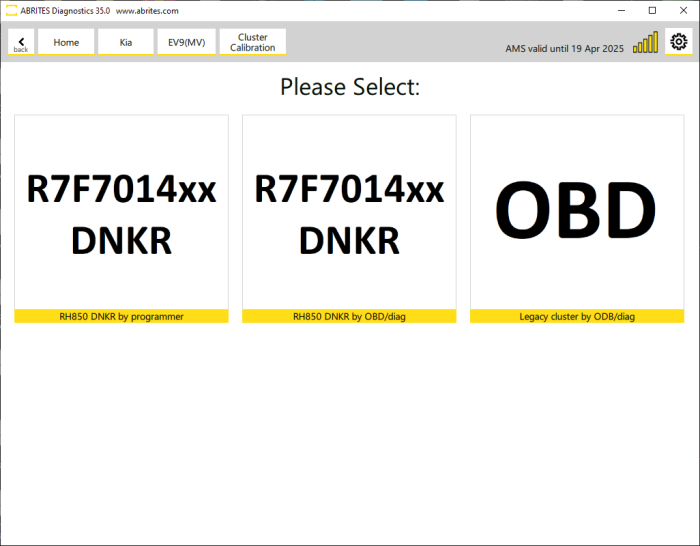

Some supported models require only work by OBD, but others will have to be read and written via the RH850/V850 Programmer. See a list below:

Supported vehicles (RH850/V850 Programmer required):

Hyundai:

• Alcazar 2020+ (DNKR)

• Bayon 2021+ (DNKR)

• Creta 2023+ (DNKR)

• Elantra 2021+ (DNKR)

• Genesis G80, GV70, GV80 (DNKR)

• I20 2020+ (DNKR)

• Ioniq, Ioniq Electric 2021+ (DNKR)

• Kona 2020+ (DNKR)

• Santa Cruz 2021+ (DNKR)

• Staria 2021+ (DNKR)

• Stargazer 2022+ (DNKR)

• Tucson 2020+ (DNKR)

KIA:

• Carens 2021+ (DNKR)

• Carnival 2021+ (DNKR)

• Ceed 2020+ (DNKR)

• Cerato/Forte 2021+ (DNKR)

• EV6 2021+ (DNKR)

• K8 (DNKR)

• Mohave (DNKR)

• Niro 2021+ (DNKR)

• Sportage 2021+ (DNKR)

In order to complete the dashboard exchange and calibration procedures, the following hardware and software are required:

• AVDI (ABRITES Vehicle Diagnostics Interface)

• ZN085 ABRITES RH850/V850 Programmer

• CB501 RH850/V850 connection cable (included in the ZN085 set)

• HK005 and HK007 legacy software licenses, now part of the basic hardware
