ZN086 - MC9S12 ADAPTER for ABPROG
Overview
Unlocked MC9S12xxxxxxxxx processors
Login for pricing
In stock
Details

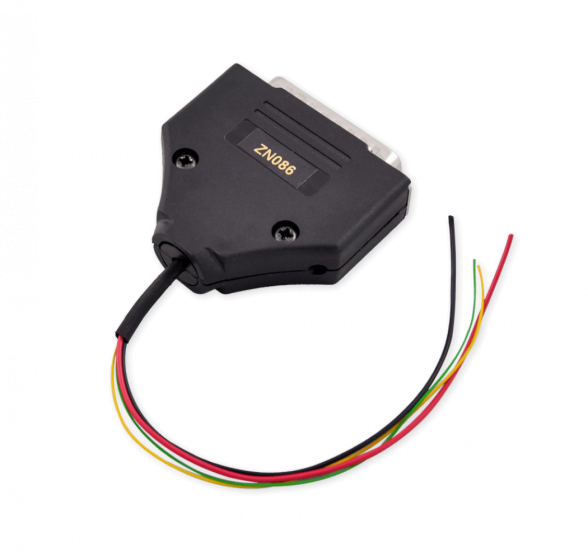

The ZN086 adapter for ABPROG is used for establishing communication with a specific type of processors.
This adapter is not a standalone tool, it is used in boot mode by directly soldering the wires to four points on the PCB.
Main functionalities:
Reading data from MC9S12 processors
Writing data from MC9S12 processors
Supported processors:
Unlocked MC9S12xxxxxxxxx processors
Pinout:
DB25 (Male) connector - used for connecting to ABPROG
4 wires 20 cm each as follows:
14pin - GND - black 0.25
21pin - +5v - red 0.25
11pin - RST - yellow 0.14
19pin - BKGD - green 0.14
These reading and writing functionalities are accessible via ABPROG Upgraded and Classic menus in the ABRITES software.
AVDI and active Assist plan are required.
